Vetta and MIDI - part 1... 26-11-2005

			Here at Vettaville, I've lost lost count of the number of questions I get on the subject of using MIDI to backup patches and update the operating system of the Vetta Combo/HD. So I thought it was about time I tackled this whole subject in one online article as best as I can. Welcome, then, to the Vettaville guide to the Line 6 Vetta and MIDI.
		The Vetta and MIDI One of the great strengths of the Vetta Combo/HD is its ability to upgrade the operating software to take advantage of new features as they become available. In addition, the Vetta also supports the ability to backup and restore user created patches via MIDI.
		MIDI: What Is It? MIDI stands for Musical Instrument Digital Interface. The most important thing to remember is that MIDI doesn't actually deal with sound data in any way - it's merely a protocol for electronic intruments and other devices to send instructions to one another. How these intructions are interpreted depends on the receiving device. To many guitarists, this can be a very intimidating thing, but once they key concepts are understood, you will be able to use it to backup your own created patches as well as upload software updates into your Vetta Combo/HD.
		What You'll Find On These Pages: These pages are certainly far from complete, but they go a long way to helping everyone better understand using a MIDI Interface and MIDI software to update the Vetta and save patches. Here's a list of what you'll find on these pages: hgf All About The Vetta's Memory Areas How The Vetta Handles SYSEX Files Making MIDI Connections To The Computer MIDI Interfaces That Are Available Using SendSx Using MIDIOX MIDI, Macintosh, and The Vetta   best of luck to everyone...Nathan Shane

more info

Source: vettaville.com

Vetta and MIDI - part 2... 26-11-2005

How the Vetta's Memory Works

Understanding how the Vetta's Internal Memory Areas works is probably one of the most difficult topics to cover. You can find this information on page 4-26 of the Vetta Owner's Manual, but I can illustrate how it works far better than just words.

Compressed Memory Area This memory area is a compressed, internal backup, and will contain either the patches which were originally shipped with the Vetta, or a Bank of Patches you have uploaded into the Vetta.

Expanded Memory Area This memory area contains the actual patches you hear when you play the Vetta. This area is where you do all your tone tweaking and saving.

Tone Tweaking Any time that you change a parameter setting for one of the amp or fx models of either a Factory or User Patch, the modifications take place in the Expanded Memory Area and are SAVED in this area as well. Remember, you may be changing the settings of a Factory Patch, but you can ONLY save it to the User Patch Area. In addition, any changes you make and save DO NOT affect the patches contained in the backup memory.

Reset From Backup Memory Any time that you do a RESET of the Factory or User Patches, the data will come from the Vetta's Compressed Backup Memory.

Edited Patches Overwritten Since the Compressed Backup Memory contains an original copy of the patches before you edited and saved them as User Patches, doing a RESET will overwrite and replace your patches.

MIDI SYSEX for Patch Backup One of the best features of the Vetta is the ability to save and restore any or all of the Factory and User Patches onto your computers hard drive. This is done by using a MIDI Interface connected to the Vetta. These type of MIDI files are called SYSEX (system exclusive) files, and will contain all the parameter settings for the patches you have created.

Save a Bank Of All 64 Patches My Own Vetta Patches.syx

Save Individual Patches My Clean Tone.syx My Crunch Tone.syx My Distortion Tone.syx My Lead Tone.syx etc...etc...

Uploading a Bank of Patches The Vetta allows you to upload a Bank of Patches into both the Factory and User Memory Area. In order to do this, the Vetta must erase the patches that were last stored in the compressed backup memory. This allows you to have a total of 128 Custom Patches, 64 located in the Factory Memory, and 64 located in the User Memory.

Send a Bank Of All 64 Patches My Own Vetta Patches.syx

Save a Bank Of All 64 Patches My Own Vetta Patches.syx

Never Lose A Patch and Create Custom Patch Banks Since the Vetta allows you to save any patch that you have created, or save a bank of 64 patches, it is in your best interest to ALWAYS SAVE/BACKUP YOUR PATCHES via MIDI. Save all your patches individually, and this will allow you to upload them into the Vetta one at a time, so that you can assemble an entire bank or your favorite 64 patches...then when you have assembled your favorite patches, save all of these 64 patches as a complete bank of patches via MIDI. If you do this, it will allow you to create numerous custom patch banks and upload them into the Vetta's Factory and User Memory Area.

For example...this

or this...

or this...

or this...

more info

Source: vettaville.com

Vetta and MIDI - part 3... 26-11-2005

How The Vetta Handles Sysex Files
Individual Patch Files: Individual Patch Files are 2KB in size, and are easy to upload into the Vetta. When sending an "individual" patch into the Vetta, there is nothing special needed to be done other than sending the file.	Sending the File: When sending a Model Defaults File into the Vetta, simply connect the MIDI Output of your computer to the Vetta's MIDI In, start your MIDI sysex software (SendSX/MIDIOX),  then select the file and transmit it to the Vetta.  The Vetta automatically recognizes "individual" patch files, and will temporarily overwrite the current patch you had showing, so that you can audition the newly uploaded patch. Do not worry, the Vetta will not permanently overwrite any "individual" patch location until you press the SAVE button, choose the Destination Location you want to save the patch in, then press SAVE again.	LCD screen reads: ...Receiving SyxEx...
Model Defaults Files: Model Defaults Files are 11KB in size, and are the most misunderstood of the sysex files. The Vetta allows the user to customize the default parameter settings of every amp and fx model (unless you prefer to just stick with the factory settings which Line6 has created).	Sending the File: When sending a Model Defaults File into the Vetta, simply connect the MIDI Output of your computer to the Vetta's MIDI In, start your MIDI sysex software (SendSX/MIDIOX),  then select the file and transmit it to the Vetta.  The Model Defaults File will automatically be recognized and stored by the Vetta when it receives it.	LCD screen reads: ...Receiving SyxEx...
Bank (of Patches) Files: Bank Patch Files are 65KB in size, and are made up of the 64 individual patches which can be stored in either the User or Factory Memory.	Sending the File: When sending a Bank Patch File into the Vetta, simply connect the MIDI Output of your computer to the Vetta's MIDI In, start your MIDI sysex software (SendSX/MIDIOX),  then:  1. Press SAVE 2. Use PAGE knob to scroll to page 8/9, select either the User or Factory memory location. 3. Press SAVE again (backup memory is erased) 4. Send your Bank.syx file into the Vetta. 5. All patches from 1A - 16d will automatically restore one at a time. 6. Press TAP to finish.	LCD screen reads:     Receive MIDI FACTORY/USER Bank? WARNING! ERASES INTERNAL MEMORY! ...erasing User/Factory backup... ...Receiving SysEx... ...restoring User/Factory Bank...
Bank + Model Defaults Files: Bank + Model Defaults Files are a combination of both a bank of patches and the model defaults combined into one .syx file. These files are not as common, but Line6 has created one of these files for the past 1.05 software update.	Sending the File: When sending a Bank + model Defaults File into the Vetta, simply connect the MIDI Output of your computer to the Vetta's MIDI In, start your MIDI sysex software (SendSX/MIDIOX),  then: 1. Power up the Vetta while holding down the REVERB button. 2. Press Vetta’s TREMOLO button to toggle through the Test routines until the Left LCD display reads: “15 Rcv Factory?”. 3. Press Vetta’s COMP button. The right LCD display will read: “PLEASE WAIT …Preparing Flash for Programs...” When the erasure is complete, the Main LCD display will read: “… Ready for SysEx …” 4. Start the transmission of the “bank+model defaults.syx” MIDI SysEx file. While the file is loading, Vetta’s right display will read: “…Receiving SysEx…” (There will be a brief period in the first 30 seconds where the display will revert to: “…Ready for SysEx…” followed by “…Receiving SysEx…” -this is normal). When the MIDI SysEx file is received, Vetta’s Right LCD display will change to: “PLEASE WAIT …Expanding Factory Programs…” and each of the 64 Channel indicators will light up, as the programs are loaded. Vetta’s Right LCD display will then read: “PLEASE WAIT … Copying Factory to User …” and each of the 64 Channel indicators will light up, as the presets are loaded. When complete, Vetta’s LCD display will return to the Main navigation display. 5. Press Vetta’s REVERB button to exit. You should see the initial legal disclaimer text screen in the Main LCD display. The process is complete.	LCD screen reads:         15 Rcv Factory?   PLEASE WAIT …Preparing Flash for Programs...Ready for SysEx   ...Receiving SysEx...   PLEASE WAIT…Expanding Factory Programs…     PLEASE WAIT…Copying Factory to User…
OS Software Update: The Operating System Update Files are 852KB in size, and are made up of all the individual amp and fx models which the Vetta uses. OS files allow Line6 to make changes to the Vetta, and keep it innovative and up to date, such as adding new amp and fx models, as well as fixing any software problems.	Sending the File: When sending a Bank Patch File into the Vetta, simply connect the MIDI Output of your computer to the Vetta's MIDI In, start your MIDI sysex software (SendSX/MIDIOX).  1. Power up the Vetta while holding down the COMP button. The Main LCD display will read: “Software Update… Press EDIT to Continue – Press TAP to Cancel”. 2. Press Vetta’s EDIT button to continue. The Main LCD display will read: “Software Update… !! WARNING !! THIS CANNOT BE UNDONE! Are you sure?” Press SAVE to Continue – Press TAP to Cancel. 3. Press Vetta’s SAVE button to continue. The Right LCD display will read: “Erasing Flash block.. 05,06,07,08… 19” incrementing as it erases each block. When the erasure is complete, the display will read: “Software Update… Ready for Software Download…” 4. Start the transmission of the update.syx MIDI SysEx file. While the file is loading, Vetta’s Right LCD display will read: “Software Download in Progress… * ” The asterisk at the right side of the display will flash to indicate the download progress. At the conclusion of the transfer, the display will read: “Software Download Complete. Press SAVE to run new software”. 5. Press SAVE to run the new software. 6. After updating the system software, you will also need to upload the model defaults file. (see above)	Software Update… Press EDIT to Continue – Press TAP to Cancel     Software Update… !! WARNING !! THIS CANNOT BE UNDONE! Are you sure?   Erasing Flash block.. 05,06,07,08…   Software Update… Ready for Software Download…       Software Download in Progress… *   Software Download Complete. Press SAVE to run new software
Additional Notes:
After updating the Vetta's Operating System, you will typically find that the program changes are very slow when switching from preset to preset. Note, you will need to reset either the Factory and/or User Banks from the Vetta's internal backup memory after you upgrade the operating software to correct for the slow patch changes. Please be aware that:Having to reset the "User" memory after an update will overwrite any patches you have created and will replace them.
Please make absolutely certain that any  sysex backup(s) of your own created patches will load properly into the Vetta before you attempt an update.  I would also suggest that you save each one of your created patches as "individual" .syx files and as a "bank" .syx file as well. Saving your patches as individual sysex files will allow you the pick and choose exactly which patches you like best, so that you can more easily assemble an entire bank of patches.

more info

Source: vettaville.com

Vetta and MIDI - part 4... 26-11-2005

The Midi Connections
	Identifying The Connection Ports There are several varieties of MIDI Interfaces available, but all do the same job. To help you determine what kind of MIDI Interface you want to use with your computer, I've included pictures of the different connections ports located on the back of the computer. Newer computers often have their USB ports located on both the back and/or front of the computer.   Parallel/Serial Ports There are MIDI Interfaces which connect to the parallel and serial ports of non-USB computers, however, these are often used far less since USB has been introduced. A PC often comes with two serial ports (COM1, COM2) and one parallel port (LPT1). On the back of the PC, the serial ports are either two male DB-9 connectors or one DB-9 and one DB-25. The parallel port is a DB-25 female connector.
	hghg
						Soundcard Joystick/MIDI Port Connection Connect the 15 pin "D-Plug" of the MIDI Connector to the Joystick port on the sound card. Carefully examine the Two 5 pin MIDI connectors. On the rubber or plastic body, look for markings to determine which one is the "IN" connector and which one is the "OUT" connector. These cable markings are often confusing.  The "IN" connector refers to MIDI data that will be sent into the computer, connect this cable to the Vetta's MIDI OUT. The "OUT" connector refers to MIDI data that will be sent out of the computer, connect this cable to the Vetta's MIDI IN.
	kjkj
			What if my computer does not have a USB port? Nearly every personal computer built in the last couple of years has at least one USB port. For those older computers which do not, it is possible to add USB support with a PCI upgrade card with USB ports. For laptops, you can use a USB CardBUS card.				Vetta MIDI IN/OUT Connection The Vetta has two 5 pin DIN sockets, MIDI IN and MIDI OUT as illustrated above. MIDI IN - Accepts MIDI data. MIDI OUT - Transmits MIDI data. Your midi interface should also have two 5 pin midi jacks, marked "IN" and "OUT" These are the most important connections -- Connect a midi cable from "OUT" on your Vetta, to "IN' on the MIDI Interface, and connect a midi cable from "IN" on your Vetta, to "OUT" on the MIDI Interface.

more info

Source: vettaville.com

Vetta and MIDI - part 5... 26-11-2005

The Midi Interfaces

These are the most common MIDI Interfaces that are currently available. Your best bet is to go with a USB MIDI Interface, since it will often be the easiest to setup and work with.

MIDIMAN Mini Macman The Mini Macman is a one-in, one-out serial midi interface for Macintosh* *Serial connections require a native serial port on the Macintosh. No serial port emulators or adapters are supported.

MIDIMAN Macman The Macman is a one-in, three-out serial midi interface for Macintosh* *Serial connections require a native serial port on the Macintosh. No serial port emulators or adapters are supported.

MIDIMAN BiPort 2x4s The BiPort 2x4s is a two-in four-out serial Midi and SMPTE interface for both Macintosh* and PC. *Serial connections require a native serial port on the Macintosh. No serial port emulators or adapters are supported.

EDIROL UM-1S USB MIDI Interface Here is another simple USB MIDI Interface. This unit requires you to purchase separate MIDI cables so the user can choose the length of cable needed.

EDIROL UM-1 USB MIDI Interface Here is a simple USB MIDI Interface which is ready to plug-in and go.

MIDIMAN USB MIDISPORT Uno The Uno is a one-in, one-out, USB Midi interface for Windows and Macintosh.

MIDIMAN USB MIDISPORT 1x1 The MIDISPORT 1x1 is a one-in, one-out, USB Midi interface for Windows and Macintosh.

MIDIMAN USB MIDISPORT 2x2 The MIDISPORT 2x2 is a two-in, two-out, USB Midi interface for Windows and Macintosh.

The MIDISPORT 1x1 is probably your best bet and least expensive MIDI Interface.

more info

Source: vettaville.com

Vetta and MIDI - part 6... 26-11-2005

Using SendSX with the Vetta
	SendSX is the most easiest of MIDI sysex programs to setup and use for uploading and saving patches to the Vetta. Click HERE to download the SendSX program directly from Vettaville.
								When working with SendSX, click on the Midi In (and Midi Out) menus at the top of the program to select which midi device you will be using. In the example to the left, notice that there is more than one midi device showing. Both the SoundBlaster Live, and WINMAN 4x4/S (which has four midi inputs), are available for selection. Since I was going to be using the SB Live, that is the one I have selected. Notice that there will be a check mark by the midi device you select. Make sure to setup SendSX for both the Midi Input and Midi Output devices.
	SendSX cannot be used for updating the operating system of the Vetta!!!
	Sending Individual Patches Into The Vetta If you have already downloaded some Vetta patches from the internet and want to audition them in your Vetta,  then click File then Open to locate any sysex files stored on your hard drive...choose the file you wish to send into your Vetta, then press F4 or hit the Send button. Please remember, when sending an "individual" patch into the Vetta, there is nothing special needed to be done other than sending the file. The Vetta automatically recognizes "individual" patch files, and will temporarily overwrite the current patch you had showing, so that you can audition the newly uploaded patch. Do not worry, the Vetta will not permanently overwrite any "individual" patch location until you press the SAVE button. SendSX for Patches/Model Defaults ONLY Sending Bulk Patches Into The Vetta When sending "bank" patches (64 User/Factory) into the Vetta, you must first press the SAVE button, then use the PAGE knob to scroll to pages 8/9 Receive Factory/User Bank?, press SAVE again to erase the internal memory, then upload your bank .syx file into the Vetta. The Vetta will then open each patch and write them one at a time into each memory location. SendSX seems to work best when used to send and save individual patch and model defaults files. Some users (such as myself) have been able to send a bank of patches into the Vetta, other users have not been successful in doing so. SendSX cannot be used for updating the operating system of the Vetta because it cannot handle very large sysex files. Saving Individual Patches From The Vetta If you want to save a patch you have created on your Vetta, scroll to that particular patch, make certain you PRESS the Clear In button of SendSX to remove any midi data that may be showing, you do not want to accidentally save any previous midi data that does not relate to the patch you are currently wanting to save. Press the SAVE button on your Vetta, use the PAGE knob to scroll to Page 5, Send MIDI Dump of Current Channel? then press the SAVE button again to send the current patch data into SendSX. Notice that you will now see some numbers and letters showing in SendSx's Midi In window...to save this patch data, click File/Open/Save Midi In As...name your file and you are done.

more info

Source: vettaville.com

Vetta and MIDI - part 7... 26-11-2005

Using MIDIOX with the Vetta
	Click here to download (Save) the “Midi-Ox” System Exclusive Utility software to your computer.
	hgh hgh jhj hgh ghg MIDI In/Out Devices When working with MIDIOX, click on the Options menu at the top of the program to select which MIDI Input and MIDI Output device you will be using. For this particular computer, there is both the SoundBlaster Live, and WINMAN 4x4/S (which has four midi inputs/outputs), available for selection. Since I was going to be using the SB Live, that is the one I have selected.  Buffer Settings For my computer, I use the Input/Output Buffer Settings that you see here on the left. There will be two other settings to configure, place a CHECK MARK by the Delay After F7=60 milliseconds, and also set a 60 millisecond Delay Between Buffers. Sending a .syx file into the Vetta MIDIOX can be used to send/save patch data as well as operating system updates into the Vetta. To send any sysex files stored on your hard drive into the Vetta, simply click in the Menu Bar on Actions/Send/SysEx File. A pop-up window will allow you to select which .syx file you want to send. MIDIOX will automatically begin sending the file into the Vetta. If you have problems getting MIDIOX to work with your Vetta, the Line 6 website has suggested to following Buffer Settings. In the “Configure Sysex Buffers” dialog box that appears, you’ll see four numeric fields with different numeric values already assigned to them. - Change the top two fields (Low Level Input Buffers “Size” and “Num”) to “1024”. - Change the 3rd field (Low Level Output Buffers “Size”) to “2048”. - Change the last field (Low Level Output Buffers “Num”) to “1024”. - Click “OK” to save your changes and exit the dialog box.

more info

Source: vettaville.com

Vetta and MIDI - part 8... 26-11-2005

MIDI, Macintosh, and the Vetta
				Please be aware that I currently have no working knowledge of using MIDI with a Macintosh computer. However, I have tried my best to gather some useful information from George Van Wagner, Line 6, and others.
							SysEx Librarian
			What Is SysEx? SysEx is a free MIDI librarian program for the Macintosh. SysEx can transmit and receive system exclusive (sysex) messages via MIDI and can save and load these messages to and from disk.  System Requirements:  A Macintosh computer with a 68020, 68030, 68040, or PowerPC processor. System 7.0 through Mac OS 9.x. Mac OS X compatibility has not been determined. Opcode Systems' OMS (version 1.2 or greater) or equivalent, including versions of Mark of the Unicorn's FreeMIDI that support OMS emulation. Contact: Please send questions or comments to: sgrace@pobox.com For more information visit the SysEx home page at http://www.pobox.com/~sgrace/sysex/ What Is SysEx Librarian? SysEx Librarian is a utility for Mac OS X which lets you communicate with MIDI devices using System Exclusive messages, also known as SysEx. The most common use is to backup patch data from synthesizers, although there are others (such as sending firmware updates).  System Requirements:  Mac OS X (10.1 or later)  MIDI hardware interface with Mac OS X driver Contact:  Please send questions or comments to:  SysExLibrarian@snoize.com   For more information visit SysEx Librarian home page at http://www.snoize.com/SysExLibrarian/ What You Need: Download and configure the SysEx MIDI librarian software for Macintosh: 1. Once you have your hands on a Mac with internet access and a MIDI interface connected and configured, go here and download the “SysEx” MIDI librarian program for Macintosh.  - Take note of where you saved it. 2. Once you’ve downloaded and expanded the application, open the “File” menu and select “Get Info”.  3. Increase the application’s Preferred memory size to 5400 (or more).  4. Launch the application. Preparing the “SysEx” MIDI librarian for Mac to send SysEx files: 1. Open the “File” menu and select “Open Any” to locate the Vetta upgrade file on your hard drive.  2. Open the file.  You will be offered the option to “Transmit” or “Receive” the file. CHOOSE NEITHER AT THIS TIME.  3. Open the “Options” menu and Select the Output Port that corresponds with your Vetta connection, found in the “OMS Studio Setup” document (the documentation provided with the app will instruct how to proceed if you’re not running OMS).   Vetta Forum Comments Regarding The Macintosh, by GVW, George Van Wagner-Line 6: You also need OMS (www.opcode.com) to get things working. 1. MIDI interface for Mac. If it's a USB based Mac, the Midiman interfaces work well (except under OS X, where no MIDI is currently working well). If it's an older serial based mac, Midiman, MOTU, or Opcode serial interfaces will all do the job. You'll also need to install OMS (Open MIDI System) which was distributed by Opcode, but is available as a free download many places on the web. 2. A MIDI Sysex (system exclusive) utility program. There's one called Sysex (current version 4.70) that's freeware and works. Sysex also comes with an Auto Typer utility that converts regular sysex files (usually a file with a .syx extension) to files that Sysex (the program) will understand. You just drop the file you want converted on the auto-typer utility to convert it. 3. The instructions from Vettaville, Line 6 FAQTRAQ, or the Vetta manual about saving and restoring patches. 4. A pair of MIDI cables (I've had no problems with MIDI feedback loops in Vetta running with this setup). Remember that the jacks on the interface and on the amp are indicating what the signal flow direction is, so you need to connect from Out to In (the MIDI data comes out of the jack labeled MIDI Out and goes in to the jack labeled MIDI In) and vice versa. Vetta Forum Question: I was trying to use some of the patches at this site but my Macintosh "SysEx" software can't read the files I've downloaded.  GVW - Answer: If you're using the "Sysex" program (current rev is 4.7, I believe), you need to use the "Sysex Auto Typer" application that's included with the program distribution. Just drop the file that you want to convert on the auto-typer program, and it will change the files creator and type so that it will open properly in Sysex. Raster - (From The Vetta Forum): I use the Midisport 1x1 to communicate with my Vetta, and it's worked pretty well so far. In OS X (10.1.5) there's a problem with the drivers and I can only receive data from the Vetta. Good for backups, but that's about it. In OS 9.2.2, I was able to send data by downloading an extension called "USB Floppy Enabler" from www.opcode.com/downloads/. I'm running a PowerBook G4 with OMS 2.3.8 and SysEx 4.7.0 and of course the Midisport 1x1. To send a file without changing the file/type creator, you can use the "File" - "Open Any..." command (Command-Y). It opens any file and allows you to upload it. Then hit the Transmit button when you're ready and - voila! - it's patch audition time. Judahbenhur - (From The Vetta Forum): If I remember correctly, I had to tweak some things in the settings - Increase Preferred memory size to 5400 (or more). If the file does not download correctly, select “Configure…” from the “Sysex” menu and make sure there is a check in the box next to “Delay after F7:” You may also need to increase the “Delay after F7: MilliSeconds” in increments of 20 until the file downloads correctly.

more info

Source: vettaville.com

Vetta & VDI... 26-11-2005

How to order the VDI in Europe

The VDI is available in Europe, it's price is € 90,- plus € 15,- shipping plus taxes (different for each country). You can sent an email to eurosales@line6.com and you'll get info how the VDI can be ordered and payed. For the different countries you can also call:

English customer (living in and ONLY in the UK) call Phil Corbould : 0044 1327 302721

French & Benelux Customers (living in France, Holland, Belgium and Luxembourg) call Henry Froelich : 0044 1327 302712

Source: vettaville.nl

Vetta & VDI review... 26-11-2005

Here's review from Line 6 Fan (ION forum member), when he first used the Variax and Vetta!! through the VDI

Source: vettaville.nl

Vetta & VDI - Installation Guide Part 1... 26-11-2005

Its here, hooray!!! After 2 years of being Line 6's flagship item, we finally get a digital out option on the Vetta Digital Interface (VDI) upgrade card. Why did it take 2 years for Line 6 to decide to simply install a digital out on their digital amp??? I guess we will never know, but thank goodness they finally did. So now Line 6 early adopters, the players on the final frontier of guitar tone, we finally get what the PODxt Pro users have had for years to use in studios. Perhaps to many folks and even better then getting a digital out on our amps, we now have direct Variax connectivity. I really cannot elaborate on this as I have not yet purchased a Variax, but man I would melt for the chance to plug my own V700 into my Vetta and enjoy the greatest digital guitar setup ever conceived. So I envy every owner that contains both parts of this digital equation. To find out more about the VDI to Variax connectivity check out the digital interface page at www.vettaville.com or Line 6.com

Whats in the Box

Let me start out by saying, if you have not yet upgraded your amp to at least v 2.0, you need to do that in order to take advantage of the VDI board. If you have been too intimidated to upgrade your OS, then installing the VDI board is definitely not for you. I am not at all saying that it is difficult to install the VDI board by yourself, but it is not for the weak at heart. In addition, it will probably take the better part of an hour to complete this procedure. It wouldn't hurt to have an extra set of hands around (I did most of it with one hand but a couple parts I had to put the camera down and wished I had help). I will denote the parts that could use an extra set of hands. First of all lets look at what comes in the Box.    As you can see, you get the VDI board, the Upgrade manual from Line 6 (for technicians), a Variax to Vetta ether-net cable with XLR style connections, and a bag. What's in the bag…well a data ribbon cable, an inline power adapter (power supply/extender), an allen wrench and 6 screws.    In addition to install the cable you will need a couple of strong arms, a clear area to work, and a good Phillips head screwdriver (electric or drill with adapter would work best!!!!). Lets get to work

more info

Source: vettaville.com / vettaville.nl

Vetta & VDI - Installation Guide Part 2... 26-11-2005

Lets get our hands dirty

Line 6 Disclaimer which can be found in the included installation manual.

DISCLAIMER:

This accessory should be installed by an authorized service center. There are no user serviceable parts and there is potential for personal injury by unauthorized personnel disassembling the unit. Line 6 does not recommend installation of this device by anyone other than Line 6 or an Authorized Service Center. If you need help finding an Authorized Service Center, please go to www.line6.comor call 818-575-3600 in the US and Canada or 011 44 1788 821 600 for Europe. For all other areas of the world, please find our distributor finder in the Support section of www.line6.com or feel free to call either of the numbers above. Any disassembly of your amplifier can result in your warranty being voided and any damage caused by installation of the end user will not be covered under any warranty.

Now we need to remove the 6 screws that holds the head to the cab. Make sure that you support the bottom of the head as you do this because the head can fall out once the screws are removed. An extra set of hands would be great for this part. (or you can turn the amp on its side so that the chassis is not dangling from above).

These screws are long and the electric screwdriver or drill would be put to nice use here. If the head does not come out easily it could be because the adhesive strips are still working fairly well. I had to do a little bit of gentle wiggling in order to get the head out of the cab.

Source: vettaville.com / vettaville.nl

Vetta & VDI - Installation Guide Part 3... 26-11-2005

Now that you have your head out of your cab (couldn’t help myself), put it on an area where you have plenty of room to work. Now use the allen wrench to remove the screws around the top of the back panel

Now lay the faceplate down carefully trying not to scratch it. I used the box that the VDI was shipped in to rest the faceplate on, this was perfect height. Simply place the box behind the front part of the head and lay the upside down faceplate on it. This should allow some give on the cables that are still connected.

Source: vettaville.com / vettaville.nl

Vetta & VDI - Installation Guide Part 4... 26-11-2005

Now you can see what makes the Vetta tick. This picture is the computer part of the amp. The two big chips on the right are the sharc processors. You can also see the battery on the top left. I cannot identify the other chips but probably most are memory chips.

That’s right you heard it hear first…these are Vetta’s 2 power tubes. Actually I am just kidding =). Okay back to work.

Unscrew the screws around the expansion port, and remove the metal plate. Once completed this plate is no longer necessary, so let’s have a competition to see who can come up with the most creative thing to do with it.

Source: vettaville.com / vettaville.nl

Vetta & VDI - Installation Guide Part 5... 26-11-2005

Now unplug the power cable. You will find this in the middle of the chassis and it looks a lot like the power supply connector on computer motherboards. Simply press in the lever and wiggle it out.

Source: vettaville.com / vettaville.nl

Vetta & VDI - Installation Guide Part 6... 26-11-2005

Now grab the data ribbon cable that came with the package and plug it into the ribbon cable slot on the main board. It will only fit one way so make sure you check where the tab cut out is in order to plug it in correctly.

Source: vettaville.com / vettaville.nl

Vetta & VDI - Installation Guide Part 7... 26-11-2005

Now plug the data ribbon cable you just plugged into the main board into the VDI board. Again it only plugs in one way so make sure you pay attention to the tab.

Source: vettaville.com / vettaville.nl

Vetta & VDI - Installation Guide Part 8... 26-11-2005

We are almost done, but now we need to put the amp back together again. Start by grabbing the faceplate and rotating it back into place. Remember we have to plug 2 cables in so leave it open enough to get your hands inside. Now plug in the ribbon cable paying attention to the tabs.

Source: vettaville.com / vettaville.nl

Vetta & VDI - Installation Guide Part 9... 26-11-2005

We are almost done, but now we need to put the amp back together again. Start by grabbing the faceplate and rotating it back into place. Remember we have to plug 2 cables in so leave it open enough to get your hands inside. Now plug in the ribbon cable paying attention to the tabs.

Source: vettaville.com / vettaville.nl

Vetta & VDI - Installation Guide Part 10... 26-11-2005

Now we need to re-attach the faceplate to the rest of the head. Grab the black trim piece and put it back in place. Since Line 6 provided 6 new screws added to the likely hood of me not having an allen wrench when I may need one, I used the left over Phillips head screws instead. Line 6 may chime in on this one and recommend using the allen wrench screws, but I did not see any difference in them besides the head type.

Source: vettaville.com / vettaville.nl

Vetta & VDI - Installation Guide Part 11... 26-11-2005

Congratulations,

You have just installed the VDI board into your Vetta I amp. Now you own a Vetta II (version 1.9 amp with OS 2.x). Don't you feel like a tech???

Anyway, I have not had time to do any recordings yet, and I don't have a Variax so other then seeing the VDI LCD screens, I haven't gotten to use it much. I plan on doing a couple of recordings both from the direct outs and digital outs to try to illustrate the difference in sound. I must first explain that if the direct outs and digital out do not sound the same its not necessarily the fault of the Vetta's DO's. The signal has to be converted to analog, out the preamp of the Vetta, into another A/D converter and possibly an additional preamp. The reason I mention that the signal may get run it into an additional preamp is because many DAW's (digital audio workstations) only provided inputs with pre's included. Either way folks will own pre's and converters of differing qualities all of which will either add to or take away from the signal you are trying to capture. I am planning on doing some tests both with an additional pre in-between and without, all to compare the signals and perhaps the best way to capture a guitar signal from the Vetta.

I would like to thank Nathan Shane, Line 6, AZ, and all the folks at ION for the opportunity to put this together. I hope that this will serve as an aid to all the pioneers that may have trouble using the tech oriented installation guide included in the VDI package or for those who just want prettier pictures =).

Good luck and happy playing over the holidays. See you back at ION.

Christian Summer

Source: vettaville.com / vettaville.nl

Vetta & VDI - Installation Guide .pdf... 26-11-2005

The VDI Installation Guide is also available in printable pdf version.
Download the VDI Install.pdf file.

Source: vettaville.nl

Vetta on the Road - Carry and Positioning... 15-11-2005

.. ..

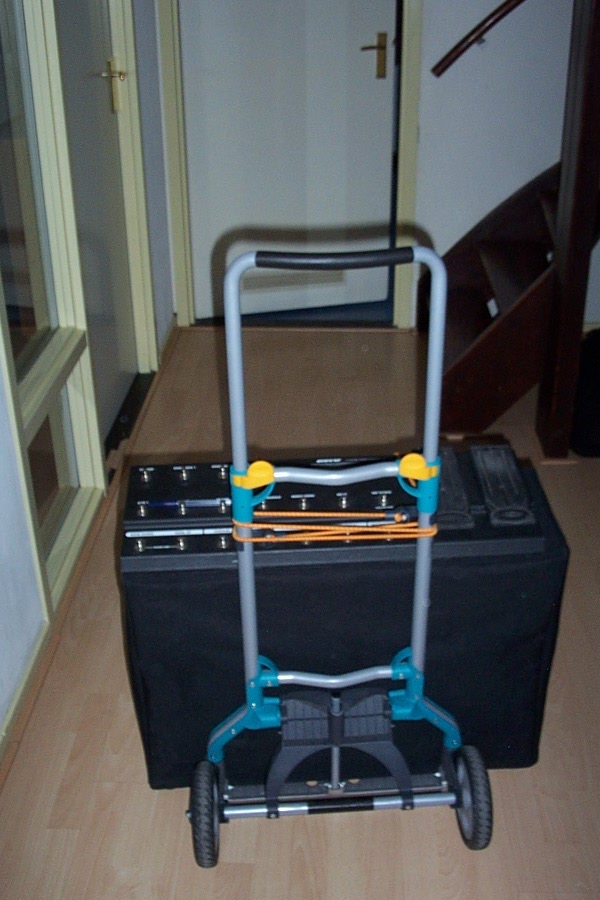

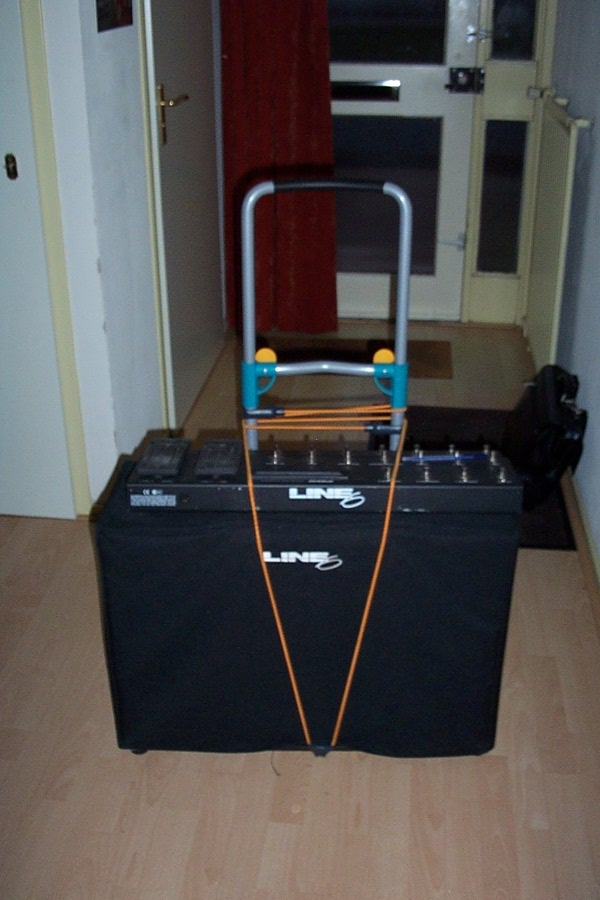

Vetta Combo + FBV on foldable cart front view and back view.

Wheel it around with no trouble at all

...

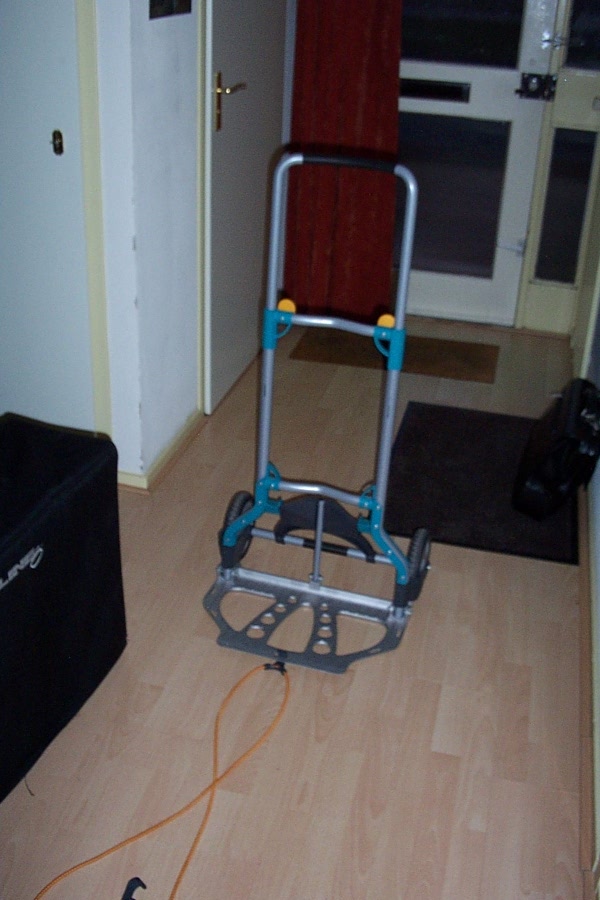

Cart by itself, completly foldable, easy to hide away

...

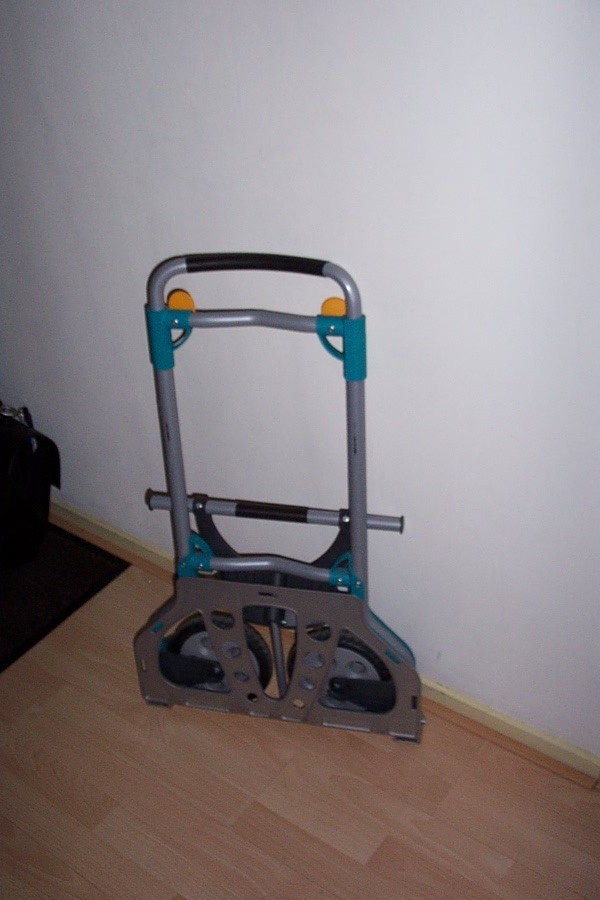

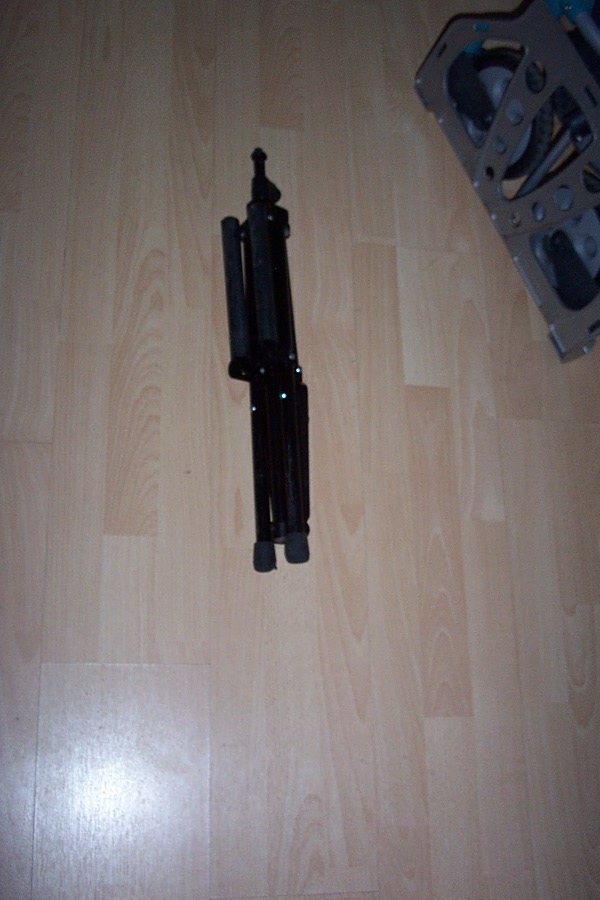

Now completly folded cart, and while I'm at it in the back of my Vetta there's this H&K foldable amp stand

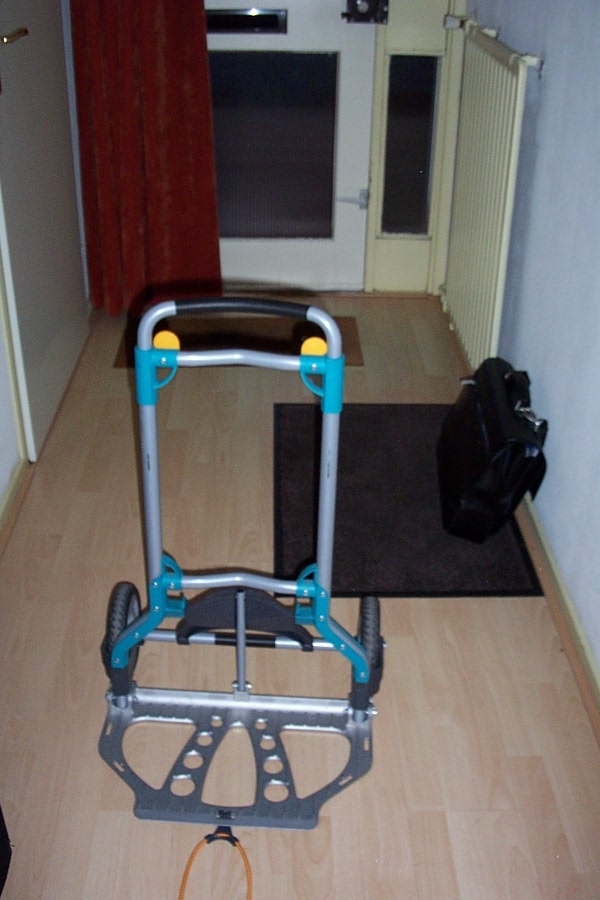

Now completly unfolded.

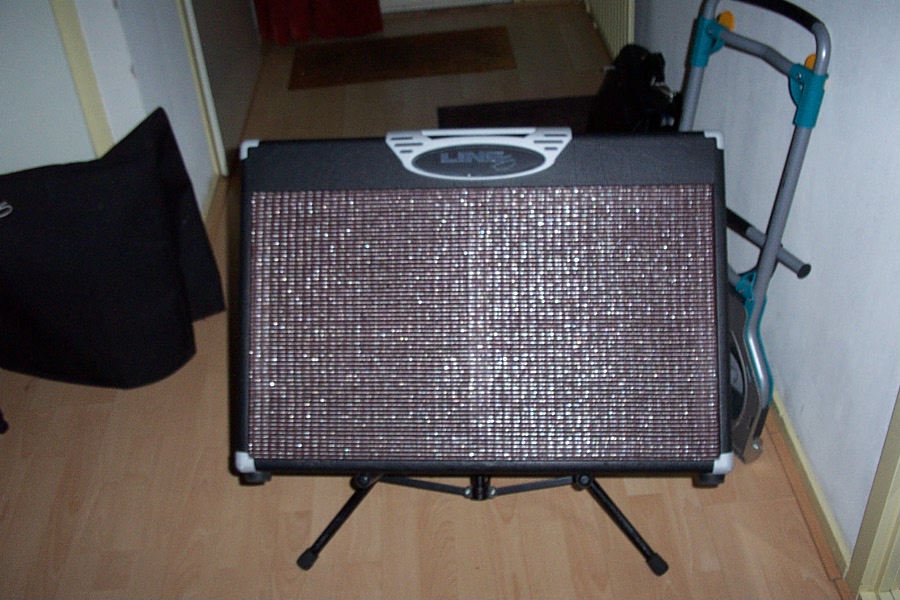

and here it is complete with Vetta

Source: vettaville.nl

Guitarport - Guitarport Remote... 15-11-2005

While using the Guitarport application you sometimes would like to be able to switch between different tones and / or use it as a MIDI controller. Patrick Julien made a program to do just that.

This software has not been developed by Line 6. It was not sanctioned by Line 6. This software is distributed as freeware. There is no guarantee with this software.

How to use GP Remote:

• Open your GuitarPort software
• Start GP Remote.
  (If you see "GuitarPort Preset:" and the name of the preset loaded in your GuitarPort software, communication between apps is fine)

MIDI Controller User:

• Config the MIDI port used by your controller (Options...MIDI Controller Devices).
  Make sure no MIDI controller is configured in GuitarPort (in Edit...Preferences...MIDI).

To map a preset to a trigger (Keyboard or MIDI controller ProgramChange command)

• Click on Map New Trigger.
• Press a key or send a ProgramChange or Controller command from your MIDI controller.
• Select a preset in your GuitarPort software.
• Click Add.

To modify an existing preset:

• Right click on it and select Edit Preset or just Double click on it.
• To change the preset associated with this Trigger, click on the button that shows the name of the current GuitarPort preset. (If you change the Preset in your GuitarPort, the button will update itself)
• Click modify and the preset will be updated in your Trigger mapping window.

To use a sequencer(like Cubase) to change GuitarPort preset automatically:

• Install a Virtual MIDI Port software (like LoopBe1, search Virtual MIDI Port on Google).
• Select this virtual device as a controller in GuitarPort Remote (Options...MIDI Controller Devices).
• Select the same virtual device in your sequencer as MIDI out device.
• Send a ProgramChange command (Midi Channel 0 should be fine, Report to your Sequencer docs to do that)

The software is free to download and use for everyone, but be nice and pay respects and pay a visit to his website and read. Patrick thanks for the work and enjoyment for all.

The program itself is a zipped file, that you need to 'unzip' and install, read the readme file, or above here for further instructions.

• Click here to download Guitarport Remote software (63 kB)

Source: Patrick Julien / vettaville.nl

Software - Guitarport Remote... 15-11-2005

While using the Guitarport application you sometimes would like to be able to switch between different tones and / or use it as a MIDI controller. Patrick Julien made a program to do just that.

This software has not been developed by Line 6. It was not sanctioned by Line 6. This software is distributed as freeware. There is no guarantee with this software.

How to use GP Remote:

• Open your GuitarPort software
• Start GP Remote.
  (If you see "GuitarPort Preset:" and the name of the preset loaded in your GuitarPort software, communication between apps is fine)

MIDI Controller User:

• Config the MIDI port used by your controller (Options...MIDI Controller Devices).
  Make sure no MIDI controller is configured in GuitarPort (in Edit...Preferences...MIDI).

To map a preset to a trigger (Keyboard or MIDI controller ProgramChange command)

• Click on Map New Trigger.
• Press a key or send a ProgramChange or Controller command from your MIDI controller.
• Select a preset in your GuitarPort software.
• Click Add.

To modify an existing preset:

• Right click on it and select Edit Preset or just Double click on it.
• To change the preset associated with this Trigger, click on the button that shows the name of the current GuitarPort preset. (If you change the Preset in your GuitarPort, the button will update itself)
• Click modify and the preset will be updated in your Trigger mapping window.

To use a sequencer(like Cubase) to change GuitarPort preset automatically:

• Install a Virtual MIDI Port software (like LoopBe1, search Virtual MIDI Port on Google).
• Select this virtual device as a controller in GuitarPort Remote (Options...MIDI Controller Devices).
• Select the same virtual device in your sequencer as MIDI out device.
• Send a ProgramChange command (Midi Channel 0 should be fine, Report to your Sequencer docs to do that)

The software is free to download and use for everyone, but be nice and pay respects and pay a visit to his website and read. Patrick thanks for the work and enjoyment for all.

The program itself is a zipped file, that you need to 'unzip' and install, read the readme file, or above here for further instructions.

• Click here to download Guitarport Remote software (63 kB)

Source: Patrick Julien / vettaville.nl

Gearbox - Input source menu... 08-11-2005

The input source menu in GearBox is different depending on whether a UX1 / UX2 is connected. There's no "Mic & Mic" option with UX1 because it only has one Mic input.

The input options are as follows (this is not in the order they appear in the application):

• Instrument
• Line 1
• Line 2
• Mic 1
• Mic 2

• Line Stereo

• Mic Stereo

• Line 1 & Line 2

• Mic 1 & Mic 2 (on UX2 only)

• Instrument & Mic 1

Each source has the same amp & cab (or preamp) and effect path with a stereo output to your recording app. Taken to the extreme, this means you can use a mic pre to record bass (a common practice) and a guitar amp for vocals (if you want that kind of effect).

The only "dual source" inputs that have two completely separate simultaneous processing paths are the last three items in the list - noted by the "&." The items noted "stereo" give you stereo in and out, but are linked with only one set of controls.

Probably the best way to record guitar and bass simultaneously is to use the instrument in for guitar and use a direct box to plug the bass into a Mic input.

Source: Line 6 / vettaville.nl

Guitarport and Workbench working at the same time... 07-11-2005

Please Note: This is not an official Line 6 trick and not tested fully on different machines, tyoes of gear and/or MIDI interfaces. However it can help most of you. So no garantees, just a helpfull hint.

If you start two Line 6 USB based applications together your computer shows you a message that you should close the already running Line 6 application. So if you wanna use Guitarport and Workbench together, at the same time, you're running into this problem.

To avoid this problem here's a Vettaville.nl Tweak Trick that enables you to use one, and only one patch from Guitarport at a time, while adjusting your Variax guitar in Workbench (USB version). This means that you can alter your guitarpatch with Workbench running and finetune it to the pre-defined tonepatch in Guitarport. Here's how..

1. Start Guitarport and select the preset that you wanna use with Workbench.
2. Start your Windows Taskmanager. You can find it by pressing your start button in windows, select run and fill in taskmgr in the opened screen and activate by hitting the return button. There's also a shorcut to get there; press CTRL - ALT and Delete buttons at the smae time and only once in Windows XP. (If you press them twice your computer will shut down!) You'll see the Taskmanager pop up. Now select the processes TAB and select GuitarPort.exe. It'll highlight in a blue colour. Click on the button in the lower right corner of the taskmanager window to end the proces.
3. Power and connect your Variax with the Workbench USB connector and connect your 1/4 out plug into your Guitarport.
4. Now start the Workbench software using the Workbench USB version on your computer.
5. Voila, you can hear your last Guitarport preset and alter your Variax with the Workbench hard and software.

If you wanna change a preset in Guitarport you'll have to stop Workbench and go back to step one as mentioned above. It's just one way to have expanded tweakability.

Source: Andy aus Darmstadt / vettaville.nl

PODxt (Pro), Guitarport and Workbench working at the same time... 07-11-2005

Please Note: This is not an official Line 6 trick and not tested fully on different machines, tyoes of gear and/or MIDI interfaces. However it can help most of you. So no garantees, just a helpfull hint.

If you start two Line 6 USB based applications together your computer shows you a message that you should close the already running Line 6 application. So if you wanna use your PODxt hardware, the Guitarport application and Workbench (USB version) together, at the same time, you running into this problem.

To avoid this problem here's a Vettaville.nl Tweak Trick that enables you to use patches from the PODxt hardware and Guitarport software at the same time while adjusting your Variax guitar with Workbench.

This means that you're you can hear and tweak and hear your patches with the PODxt (Pro) hardware and alter and hear your Variax patches in Workbench at the same time. Meaning you'll hear the interaction of both products and the overall tone it provides. Here's how..

1. Connect your PODxt (Pro) and switch it on.
2. Start the Guitarport software and select the preset that you wanna use with Workbench.
3. Start your Windows Taskmanager. You can find it by pressing your start button in windows, select run and fill in taskmgr in the opened screen and activate by hitting the return button. There's also a shorcut to get there; press CTRL - ALT and Delete buttons at the same time and only once in Windows XP. (If you press them twice your computer will shut down!) You'll see the Taskmanager pop up. Now select the processes TAB and select GuitarPort.exe. It'll highlight in a blue colour. Click on the button in the lower right corner of the taskmanager window to end the proces.
4. Power and connect your Variax with the Workbench USB connector and connect your 1/4 out plug into your PODxt (Pro).
5. Now start the Workbench software using the Workbench USB version on your computer.
6. Voila, now you can hear your selected Guitarport preset and alter your Variax at the same time.
7. To alter the sounds of your PODxt you need to physically turn the knobs and press the buttons on your PODxt (Pro). You can't use Line 6 Edit for it.

Source: vettaville.nl

Workbench - Workbench (USB) and Guitarport... 07-11-2005

Please Note: This is not an official Line 6 trick and not tested fully on different machines, tyoes of gear and/or MIDI interfaces. However it can help most of you. So no garantees, just a helpfull hint.

If you start two Line 6 USB based applications together your computer shows you a message that you should close the already running Line 6 application. So if you wanna use Guitarport and Workbench together, at the same time, you're running into this problem.

To avoid this problem here's a Vettaville.nl Tweak Trick that enables you to use one, and only one patch from Guitarport at a time, while adjusting your Variax guitar in Workbench (USB version). This means that you can alter your guitarpatch with Workbench running and finetune it to the pre-defined tonepatch in Guitarport. Here's how..

1. Start Guitarport and select the preset that you wanna use with Workbench.
2. Start your Windows Taskmanager. You can find it by pressing your start button in windows, select run and fill in taskmgr in the opened screen and activate by hitting the return button. There's also a shorcut to get there; press CTRL - ALT and Delete buttons at the smae time and only once in Windows XP. (If you press them twice your computer will shut down!) You'll see the Taskmanager pop up. Now select the processes TAB and select GuitarPort.exe. It'll highlight in a blue colour. Click on the button in the lower right corner of the taskmanager window to end the proces.
3. Power and connect your Variax with the Workbench USB connector and connect your 1/4 out plug into your Guitarport.
4. Now start the Workbench software using the Workbench USB version on your computer.
5. Voila, you can hear your last Guitarport preset and alter your Variax with the Workbench hard and software.

If you wanna change a preset in Guitarport you'll have to stop Workbench and go back to step one as mentioned above. It's just one way to have expanded tweakability.

Source: vettaville.nl

Workbench - Workbench (USB), PODxt (Pro) and Guitarport... 07-11-2005

Please Note: This is not an official Line 6 trick and not tested fully on different machines, tyoes of gear and/or MIDI interfaces. However it can help most of you. So no garantees, just a helpfull hint.

If you start two Line 6 USB based applications together your computer shows you a message that you should close the already running Line 6 application. So if you wanna use your PODxt hardware, the Guitarport application and Workbench (USB version) together, at the same time, you running into this problem.

To avoid this problem here's a Vettaville.nl Tweak Trick that enables you to use patches from the PODxt hardware and Guitarport software at the same time while adjusting your Variax guitar with Workbench.

This means that you're you can hear and tweak and hear your patches with the PODxt (Pro) hardware and alter and hear your Variax patches in Workbench at the same time. Meaning you'll hear the interaction of both products and the overall tone it provides. Here's how..

1. Connect your PODxt (Pro) and switch it on.
2. Start the Guitarport software and select the preset that you wanna use with Workbench.
3. Start your Windows Taskmanager. You can find it by pressing your start button in windows, select run and fill in taskmgr in the opened screen and activate by hitting the return button. There's also a shorcut to get there; press CTRL - ALT and Delete buttons at the same time and only once in Windows XP. (If you press them twice your computer will shut down!) You'll see the Taskmanager pop up. Now select the processes TAB and select GuitarPort.exe. It'll highlight in a blue colour. Click on the button in the lower right corner of the taskmanager window to end the proces.
4. Power and connect your Variax with the Workbench USB connector and connect your 1/4 out plug into your PODxt (Pro).
5. Now start the Workbench software using the Workbench USB version on your computer.
6. Voila, now you can hear your selected Guitarport preset and alter your Variax at the same time.
7. To alter the sounds of your PODxt you need to physically turn the knobs and press the buttons on your PODxt (Pro). You can't use Line 6 Edit for it.

Source: Andy aus Darmstadt / vettaville.nl

Toneport - Tonedirect and Latency... 03-11-2005

ToneDirect™ monitoring, gives you fully processed audio in real time while you track! Better than recording through plug-ins, it avoids the latency from your recording program and operating system.  ToneDirect™ also easily beats analog direct monitoring options that force you to record guitar without hearing the amp model and effects, or struggle to get an inspired vocal with no reverb!

Using the analog outs from the UX will add latency to your system. The whole concept of ToneDirect™ is that it does the modeling at the driver level to reduce latency to the absolute minimum.

Try running small buffer sizes and make sure that you are monitoring through the UX1 and not using the software monitoring feature of your program like Cubase for instance. Line 6's driver latency is extremely low if you use the ToneDirect™ monitoring. Host latency for software monitoring is always an issue.

Source: Line 6 / vettaville.nl

Gearbox - Tonedirect / Toneport and Latency... 03-11-2005

ToneDirect™ monitoring, gives you fully processed audio in real time while you track! Better than recording through plug-ins, it avoids the latency from your recording program and operating system.  ToneDirect™ also easily beats analog direct monitoring options that force you to record guitar without hearing the amp model and effects, or struggle to get an inspired vocal with no reverb!

Using the analog outs from the UX will add latency to your system. The whole concept of ToneDirect™ is that it does the modeling at the driver level to reduce latency to the absolute minimum.

Try running small buffer sizes and make sure that you are monitoring through the UX1 and not using the software monitoring feature of your program like Cubase for instance. Line 6's driver latency is extremely low if you use the ToneDirect™ monitoring. Host latency for software monitoring is always an issue.

Source: Line 6 / vettaville.nl
