BOSE L1 model II and T1 Audio Engine info

Pressrelease... 12-12-07

The latest news on Line 6 & Bose® related topics and issues

Just 3 clicks away to read it all

Click to stay tuned



SOURCE: VETTAVILLE.NL

top of page

Bose L1 model II and T1 pressrelease... 28-03-07

Bose and Line 6 logo

PRESS RELEASE
March, 2007

BOSE INTRODUCES ITS MOST ADVANCED SYSTEM FOR MUSICIANS

Frankfurt, Germany - Bose has added to its line of portable line array systems with the release of the new L1™ model II system and T1 ToneMatch™ audio engine.  These new products build on the unique approach to live music amplification the company introduced in 2003 with its CYLINDRICAL RADIATOR™ loudspeaker.  Together, they deliver a combination of tone quality, sound coverage and portability previously unavailable from conventional live sound amplification systems.

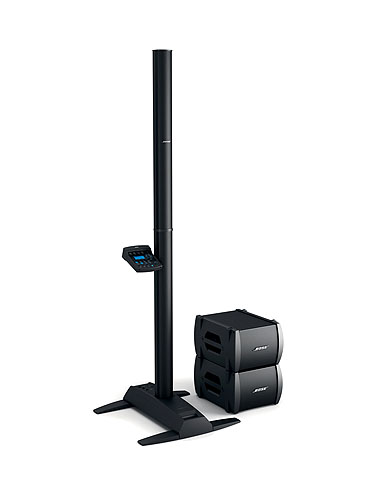

The design of the new L1 model II system is inspired by the original BOSE® CYLINDRICAL RADIATOR™ loudspeaker, with a long, vertical row of small, closely-spaced drivers mounted in a tall, slim enclosure.  A new Articulated Array speaker system makes it possible for the L1 model II system to deliver more uniform sound coverage across the stage and into the audience.  This allows performers and listeners to hear full, detailed, tonally balanced sound -- whether they are in front of the speaker or off to the side.

Bose L1 001

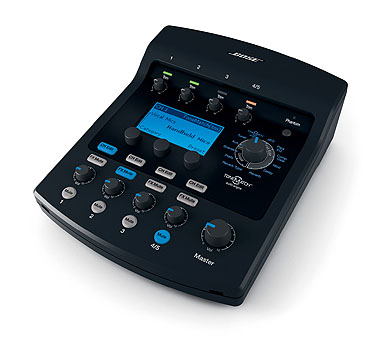

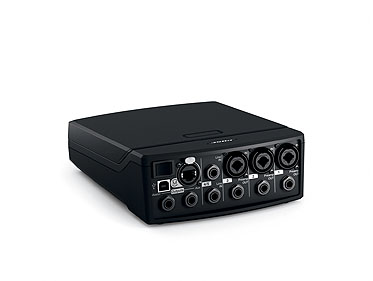

The T1 ToneMatch audio engine is a multi-channel audio device available with the L1 model II system.  It gives musicians access to new tone-shaping technologies, providing a complete suite of studio-class effects and processing, as well as additional channels for instruments or microphones.  ToneMatch audio engine presets are custom-engineered for specific instruments and microphones when used with BOSE® L1™ portable line array systems.  These presets are designed to bring musicians closer to the true sound of their voice or instrument at the touch of a button.

Bose T1 005Bose T1 006

Proprietary zEQ tone controls allow for further adjustments once a musician has selected their ToneMatch™ audio engine preset.



While conventional controls are generic by design, with “high,” “mid” and “low” controls spread out across the entire musical spectrum, BOSE® zEQ automatically shifts the range of these controls so they correspond directly to the range of the performer’s voice or instrument.  This innovative technology gives musicians more precise control over their tone, making it easier to fine-tune their sound.

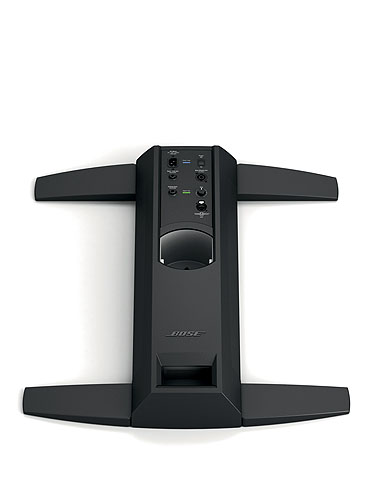

  1. The L1™ model II system incorporates a completely redesigned power stand that supports the loudspeaker and houses the amplification and additional electronics.  It occupies only a small footprint on stage and features mechanically retracting support legs, allowing it to be more compact for transport and storage.  The L1 model II power stand also includes a simple, direct interface for use with external audio sources such as laptops, MP3 players and DJ mixers.  A ToneMatch audio engine port allows for a single cable digital connection to the T1 ToneMatch audio engine.



Bose L1 004

Bose L1 Portable Line Array Systems
The L1 model II system and T1 ToneMatch audio engine are the latest in an expanding line of portable line array systems from Bose.  The L1 product family also includes the L1 model I system, the B1 bass module and the A1 PackLite power amplifier.

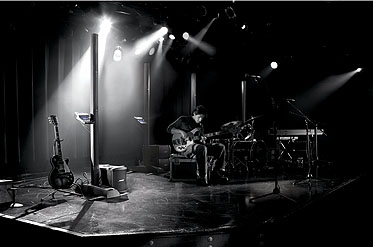

Bose L1™ systems eliminate the need for PA speakers, monitors and mixing consoles, so they take only a few minutes to set up and require minimal cargo space.  Designed for small- to medium-sized venues, they provide a viable alternative for musicians who use amplification to perform.

Each performer can use their own L1 system, or some can share.  With the system placed behind them, musicians can play with the knowledge that the same sound they hear on stage is what is projected into the audience.

Bose L1 007

The L1™ model II system and T1 ToneMatch™ audio engine will be available in June 2007.  The complete line of Bose L1 portable line array products can be purchased through authorized BOSE® MusicPartners nationwide.  For more information about Bose products for musicians, call Bose directly or visit their website.

About Bose Corporation
Bose Corporation was founded in 1964 by Dr. Amar G. Bose.  Today, the company is one of the largest and best-known audio technology developers and product manufacturers throughout the world.  Bose is known for home entertainment systems and speakers, the WAVE® products, premium automotive music systems, noise reducing headsets for consumers and pilots, and professional sound installations for public spaces and musicians.


source: BOse / VETTAVILLE.NL

top of page

Bose T1 audio engine - Sections... 29-03-07

Bose and Line 6 logo



The T1 ToneMatch audio engine is a multi-channel audio device available with the L1 model II system.  It gives musicians access to new tone-shaping technologies, providing a complete suite of studio-class effects and processing, as well as additional channels for instruments or microphones.  ToneMatch audio engine presets are custom-engineered for specific instruments and microphones when used with BOSE® L1™ portable line array systems.  These presets are designed to bring musicians closer to the true sound of their voice or instrument at the touch of a button.

Bose T1 005Bose T1 006

Proprietary zEQ tone controls allow for further adjustments once a musician has selected their ToneMatch™ audio engine preset.



While conventional controls are generic by design, with “high,” “mid” and “low” controls spread out across the entire musical spectrum, BOSE® zEQ automatically shifts the range of these controls so they correspond directly to the range of the performer’s voice or instrument.  This innovative technology gives musicians more precise control over their tone, making it easier to fine-tune their sound. The dial on the T1 has the following sections:

  • Tone Match engine
  • zEQ
  • Para EQ
  • Comp Gate
  • Mod (ulation)
  • Delay
  • Reverb
  • Reverb type
  • Prefs
  • Scenes
  • Aux
  • Tuner
    and back to Tone Match Engine.

    zEQ may be the coolest move of the whole thing. Mike Z at Bose came up with the idea that when you ran an instrument (such as a bass) into a traditional ANY system (even our original), the EQs for bass/mid/treble were set for full range audio.

    zEQ allows you to tell the T1 Tone Match Module what instrument is plugged into a particular channel and suddenly your EQ parameters for bass/mid/treble, should you chose to use the zEQ, are aligned to the frequency range of the instrument. So you would be have 3 ranges of tone control only within the range of notes that instrument produces. Helps you fine tune the sound of your bass differently than your mandolin, for instance.


source: BOse / VETTAVILLE.NL

top of page

Bose T1 audio engine - Effects... 29-03-07

Bose and Line 6 logo



The T1 ToneMatch audio engine is a multi-channel audio device available with the L1 model II system.  It gives musicians access to new tone-shaping technologies, providing a complete suite of studio-class effects and processing, as well as additional channels for instruments or microphones.  ToneMatch audio engine presets are custom-engineered for specific instruments and microphones when used with BOSE® L1™ portable line array systems.  These presets are designed to bring musicians closer to the true sound of their voice or instrument at the touch of a button.

Bose T1 005Bose T1 006

Proprietary zEQ tone controls allow for further adjustments once a musician has selected their ToneMatch™ audio engine preset.

Here is an overview of the onboard effects:

Effects
Modulation


Chorus 1: Brite - Shimmering chorus that works well with acoustic instruments. Includes adjustable mix, depth and
speed parameters.

Chorus 2: Warm - Similar to Chorus 1 but with a little less high frequencies. Includes adjustable mix, depth and speed
parameters and works well with electric guitars and basses.

Chorus 3: Dark - Similar to Chorus 2 but with less high frequencies for a darker tone. Includes adjustable mix, depth
and speed parameters, and works well with electric guitars and basses.

Flanger 1: Tape - Tape-style flanger with no feedback. Includes adjustable mix, depth and speed parameters, and
works well with electric guitars and basses.

Flanger 2: Feedback - Same as Flanger 1 but with preset Feedback effect.

Phaser 1: Stomp - Classic “stomp box”-style phaser. Features a preset wide speed with variable speed and feedback
parameters, and works well with electric guitars/basses and keyboards.

Phaser 2: Rack - Classic “rack”-style phaser. Features a positive mix type with variable speed and feedback
parameters, and works well on electric guitars/basses and keyboards.

Phaser 3: Warm - Vintage-style phaser. Features a positive mix type with variable speed and feedback parameters, and
works well as an effect on electric guitars/basses and keyboards.

Phaser 4: Bright - Phaser with no bass. Features a positive mix type with variable speed and feedback parameters that
works well on electric guitars and keyboards.

Tremolo - Vintage-style tremolo effect with variable speed and depth parameters that works well as an effect on guitars
and keyboards.


Delay
Choose from analog, digital or tape delay. Independently assign/adjust the delay settings for desired channels with
discrete control over the mix and feedback time parameters for each channel. For example, the user may select a tape delay for the vocal on Channel 1 while selecting an analog delay for the guitar on Channel 2.


Digital Delay - Digital delay effect where the repeats remain uncolored. Features adjustable mix, time, and feedback
parameters, and may be used on guitars, drums or vocals.

Analog Delay - Classic analog delay effect, where the repeats continuously deteriorate. Features adjustable mix, time
and feedback parameters, and may be used with guitars, drums or vocals.

Tape Delay - Vintage-style tape delay effect, where the repeats deteriorate even more than analog delay, and may be
used with guitars, horns, harmonica or vocals.


Reverb
The T1 allows access to a global reverb type that may be applied to all channels. The reverb types are plate, small, medium, large and cavern. Control decay time and level of reverb signal sent through master output. Please keep in mind that once you select a global reverb type to be used among any or all channels, you may control the mix and brightness of each channel. However, the type of reverb may only be altered for all channels. This is achieved through adjusting the Reverb Type audio engine mode.


Plate - Creates the ambience of a medium-sized space. Features adjustable time and balance (ratio of early/later
reflections) parameters and may be used with guitar, horns, percussion instruments and vocals.

Small - Creates the ambience of a small-sized space. Features adjustable time and balance (ratio of early/later
reflections) parameters and may be used with guitar, horns, percussion instruments and vocals.

Medium - Creates the ambience of a medium-sized space. Features adjustable time and balance (ratio of early/later
reflections) parameters and may be used with guitar, horns, percussion instruments and vocals.

Large - Creates the ambience of a large-sized space. Features adjustable time and balance (ratio of early/later
reflections) parameters, and may be used with guitar, horns, percussion instruments and vocals.

Cavern - Creates the ambience of an extremely large space. Features adjustable time and balance (ratio of early/later
reflections) parameters, and may be used with guitar, horns, percussion instruments and vocals.


Dynamics Processing


Compressor 1: Light - Compressor featuring a preset low compression ratio with variable threshold and gain
parameters. May be used as a general-purpose compression for most instruments and microphones that require minimal
level control.

Compressor 2: Medium - Compressor featuring a preset moderate compression ratio with variable threshold and gain
parameters and may be used with basses, guitars, keyboards, vocals or other instruments requiring subtle level control.

Compressor 3: Heavy - Compressor featuring a preset high compression ratio with variable threshold and gain
parameters and may be used with loud instruments such as horns and drums, vocals or other instruments that require
more aggressive level control.

Noise gate - adjustable threshold and speed independently assignable for each channel. Controls extraneous noise from
open microphones or hot instrument pickups from being introduced into the system.

Limiter – User-adjustable threshold and gain settings are independently assignable for each channel.
Prevents input signals from overloading, helping to maintain consistent gain staging.

De-Esser – User-adjustable threshold and gain settings are independently assignable for each channel.
Compression useful in reducing high-end frequencies associated with vocal sibilant sounds.

Kick Gate The Kick Gate is a Bose proprietary technology that allows you to drive your kick
drum to loud levels while avoiding microphone feedback.


source: BOse / VETTAVILLE.NL

top of page

Bose T1 audio engine - The zEQ functionality... 29-03-07

Bose and Line 6 logo

The T1 ToneMatch audio engine is a multi-channel audio device available with the L1 model II system.  It gives musicians access to new tone-shaping technologies, providing a complete suite of studio-class effects and processing, as well as additional channels for instruments or microphones.  ToneMatch audio engine presets are custom-engineered for specific instruments and microphones when used with BOSE® L1™ portable line array systems.  These presets are designed to bring musicians closer to the true sound of their voice or instrument at the touch of a button.

Bose T1 005

Proprietary zEQ tone controls allow for further adjustments once a musician has selected their ToneMatch™ audio engine preset.

zEQ
Provides instrument-specific Low/Mid/High tone controls and therefore shaping the tone of an instrument.
Based on the ToneMatch preset, the zEQ function allows you to cut or boost the Low/Mid/High frequency bands from +15 dB to –15dB.

Proprietary zEQ tone controls let you make further adjustments after selecting your ToneMatch preset. Ordinary tone controls are generic by design, with "High," "Mid," and "Low" controls spread out across the entire musical spectrum. But with the touch of a button, Bose zEQ automatically shifts the range of these controls to correspond directly to the range of your instrument. This technology gives you more precise tone control, so it's easier to fine-tune your sound.



Here's what happens when you're using it.

By selecting a ToneMatch™ preset, you're telling the T1 something about what you play or that you sing.
Once you do that, zEQ tone controls are automatically programmed to give you the three most useful tonal enhancements for that instrument or for the voice. We found these three top sensitive tonal ranges by listening.

So, for example, if you select a ToneMatch preset for an electric bass, the three tone controls are automatically programmed to provide the three most useful tonal enhancements we could find for the bass guitar.

This is profound. Think about the choices before: you'd have fixed-frequency and fixed-Q tone controls on a mixer that often didn't line up at all with what you wanted to boost or cut, or you'd have tone controls with variable frequency and Q that most people haven't a clue how to optimize.

Bose thought we could do all the work for you. Bose took the time to explore the best center frequencies and the best Q values and custom designed three filters for each ToneMatch preset that tie to the instrument or voice.

Grab any of the three tone controls and they all do something useful.



Or even more simply put, you tell it you're playing a guitar, the tone controls (bass, mid, treble) are more focused on the frequency range of THAT INSTRUMENT. Plug in a bass and tell it "Bass guitar" and the bass/mid/treble controls act differently and boost/cut a smaller range of frequencies that are tailored to a bass guitar.

Instead of 20Hz-20kHz as the range for bass/mid/treble, it is suited to your instrument (a bass, for instance, might only cover 30Hz to 1000Hz and that's it).



zEQ automatically shifts the tone control center frequencies in response to the preset setting, at the time you choose the preset. zEQ "comes with the preset", invisibly.

Example: Suppose you are a singing bass player (imagine that!). You put your mic into Input 1 and choose a vocal mic preset there, and then you put your instrument into Input 2 and choose a bass guitar preset there. Now you boost the treble on your vocal channel and notice that your voice gets brighter and has stronger sibilants. Next you boost the treble on your instrument and notice that you get more snap and harmonics. The frequency ranges boosted by the two treble controls are different and are appropriate to the ranges of the instruments designated by the presets. Automagically, no secret menu tweaking, no user serviceable parts inside. You don't have to ask for it, you just get it, every time.



Bose optimized not only the frequencies but also the exact shape of the tone controls. There is fairly large possible set of control shapes (notches and peaks with different widths, shelves with different steepness, spectral tilts, etc.) and Bose have spend countless hours experimenting to find the best fit for each instrument.

The T1 supports individual zEQ settings for each preset. Although most acoustic guitar presets use the same zEQ, every now and then we find a particular model zEQ that works better with a different zEQ and we incorporate that into the specific preset for that model. Again, that's an example of "the more we know about your instrument, the better presets can be made to help you making it sound good".


source: BOse / VETTAVILLE.NL

top of page

Channel 6 Web TV - Episode 14 - Bose L1 Model II Introduction - 1... 02-05-07

Bose introduced their new amplification system last month duing Musik Messe 2007. Vettaville.nl taped the introduction for you. You'll get excerpts of the complete introduction so you'll get all the most details direct. Here's part one hosted by Ken Jacob from Bose, Stay Tuned for more soon...

Please note: The sound on this converted presentation does not represent the actual sound quality.


source: BOse / VETTAVILLE.NL

top of page

Channel 6 Web TV - Episode 15 - Bose L1 Model II Introduction - 2... 03-05-07

Bose introduced their new amplification system last month duing Musik Messe 2007. Vettaville.nl taped the introduction for you. You'll get excerpts of the complete introduction so you'll get all the most details direct. Here's part two hosted by Ken Jacob from Bose, Stay Tuned for more soon...

Please note: The sound on this converted presentation does not represent the actual sound quality.


source: BOse / VETTAVILLE.NL

top of page

Channel 6 Web TV - Episode 16 - Bose L1 Model II Introduction - 3... 04-05-07

Bose introduced their new amplification system last month duing Musik Messe 2007. Vettaville.nl taped the introduction for you. You'll get excerpts of the complete introduction so you'll get all the most details direct. Here's part three hosted by Ken Jacob from Bose, Stay Tuned for more soon...

Please note: The sound on this converted presentation does not represent the actual sound quality.


source: BOse / VETTAVILLE.NL

top of page

Channel 6 Web TV - Episode 17 - Bose L1 Model II Introduction - 4... 07-05-07

Bose introduced their new amplification system last month duing Musik Messe 2007. Vettaville.nl taped the introduction for you. You'll get excerpts of the complete introduction so you'll get all the most details direct. Here's part four hosted by Ken Jacob from Bose, Stay Tuned for more soon...

Please note: The sound on this converted presentation does not represent the actual sound quality.


source: BOse / VETTAVILLE.NL

top of page

Channel 6 Web TV - Episode 20 - Bose L1 Model II Introduction - 5... 17-05-07

Bose introduced their new amplification system last month duing Musik Messe 2007. Vettaville.nl taped the introduction for you. You'll get excerpts of the complete introduction so you'll get all the most details direct. Here's part five hosted by Ken Jacob from Bose, Stay Tuned for more soon...

Please note: The sound on this converted presentation does not represent the actual sound quality.


source: BOse / VETTAVILLE.NL

top of page

Channel 6 Web TV - Episode 20 - Bose L1 Model II Introduction - 6... 20-05-07

Bose introduced their new amplification system last month duing Musik Messe 2007. Vettaville.nl taped the introduction for you. You'll get excerpts of the complete introduction so you'll get all the most details direct. Here's part six hosted by Ken Jacob from Bose, Stay Tuned for more soon...

Please note: The sound on this converted presentation does not represent the actual sound quality.


source: BOse / VETTAVILLE.NL

top of page

Channel 6 Web TV - Episode 20 - Bose L1 Model II Introduction - 7... 23-05-07

Bose introduced their new amplification system last month duing Musik Messe 2007. Vettaville.nl taped the introduction for you. You'll get excerpts of the complete introduction so you'll get all the most details direct. Here's part seven hosted by Ken Jacob from Bose, Stay Tuned for more soon...

Please note: The sound on this converted presentation does not represent the actual sound quality.


source: BOse / VETTAVILLE.NL

top of page

Channel 6 Web TV - Episode 20 - Bose L1 Model II Introduction - 8... 25-05-07

Bose introduced their new amplification system last month duing Musik Messe 2007. Vettaville.nl taped the introduction for you. You'll get excerpts of the complete introduction so you'll get all the most details direct. Here's part eight hosted by Ken Jacob from Bose, Stay Tuned for more soon...

Please note: The sound on this converted presentation does not represent the actual sound quality.


source: BOse / VETTAVILLE.NL

top of page

Channel 6 Web TV - Episode 28 - Bose L1 Model II Introduction - 9... 11-06-07

Bose introduced their new amplification system last month duing Musik Messe 2007. Vettaville.nl taped the introduction for you. You'll get excerpts of the complete introduction so you'll get all the most details direct. Here's part nine hosted by Ken Jacob from Bose, Stay Tuned for more soon...

Please note: The sound on this converted presentation does not represent the actual sound quality.


source: BOse / VETTAVILLE.NL

top of page

Channel 6 Web TV - Episode 29 - Bose L1 Model II Introduction - 10... 11-06-07

Bose introduced their new amplification system last month duing Musik Messe 2007. Vettaville.nl taped the introduction for you. You'll get excerpts of the complete introduction so you'll get all the most details direct. Here's part nine hosted by Ken Jacob from Bose, Stay Tuned for more soon...

Please note: The sound on this converted presentation does not represent the actual sound quality.


source: BOse / VETTAVILLE.NL

top of page

Bose L1 - Bose L1 and T1 Demo... 12-12-07

Bose L1

The Bose L1 offers a total solution to live sound incorporating personal amplification, monitoring and PA all in one package. Stand by to be very impressed. Here's an explanation by Guitar TV Online and the New Bose L1 and T1 soundsystem.


Copyright GuitarTVonline.com


source:GuitarTVonline.com
